IMPRESIND gas radiant heating system is an independent heating system consisting of three parts: combustion unit, radiant modules and control system. Powered by natural gas or LPG. The system uses radiant heat to warm people and objects directly, without air movement.
1）Combustion unit
A multi-gas burner with high efficiency, and low NOx emissions. The combustion unit is installed outside the building. It generates thermal energy by burning natural gas or LPG and distributes it through a recirculation system that maintains a consistent temperature throughout the entire radiant circuit.
2）Radiant modules
The radiant modules are tailor-made to meet the specific needs of each client. The radiant modules are available in various configurations: straight, curved for changes in direction and elevation, as well as “T”configurations, which to meet the specific needs of each client.
3）System Control
Each unit operates independently and can be managed via a single control panel or a centralized system. It allows flexible operation, enabling each tube or group of tubes to function in identical or distinct modes to meet the requirements of different operational areas.
Energy Efficient
Infrared gas-fired radiant heating system is the use of natural gas, liquefied petroleum gas and other flammable gases, burning in a special combustion device, the heat is circulated in the radiation tube, the radiation tube emits infrared rays for heating, and the heat recovery device is added in the burner, so that the heat is recycled again to achieve the effect of full utilization of energy. And can achieve temperature control, the temperature reaches the set value, the equipment stops burning, thus saving energy.
Environmental Protection
Natural gas and liquefied petroleum gas are clean energy, and there is no sulfide and no dust in the combustion products. The exhaust emissions of the equipment fully meet the new European atmospheric emission standards.
High Comfort

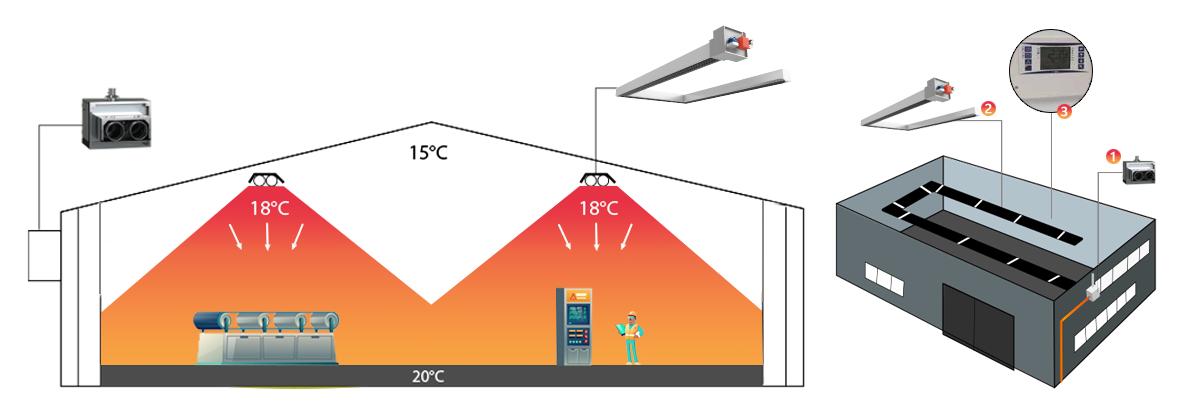

Infrared radiation heating is similar to the sun's radiation to the Earth, solar energy radiates heat through the atmosphere to the Earth's surface, because the sun can emit light waves (infrared) principle. Infrared radiation heating equipment uses this principle to direct heat through the air, heat is absorbed by solids, people and various objects, and through these objects for secondary radiation, thus heating other objects around. And infrared rays can penetrate the inside of the human body 15cm, heat from the inside, solid this system is also known as "artificial solar heating system".
Infrared gas-fired radiant heating system is the use of natural gas, liquefied petroleum gas and other flammable gases, burning in a special combustion device, the heat is circulated in the radiation tube, the radiation tube emits infrared rays for heating, and the heat recovery device is added in the burner, so that the heat is recycled again to achieve the effect of full utilization of energy. And can achieve temperature control, the temperature reaches the set value, the equipment stops burning, thus saving energy.
Environmental Protection
Natural gas and liquefied petroleum gas are clean energy, and there is no sulfide and no dust in the combustion products. The exhaust emissions of the equipment fully meet the new European atmospheric emission standards.
High Comfort
Infrared radiation heating is similar to the sun's radiation to the Earth, solar energy radiates heat through the atmosphere to the Earth's surface, because the sun can emit light waves (infrared) principle. Infrared radiation heating equipment uses this principle to direct heat through the air, heat is absorbed by solids, people and various objects, and through these objects for secondary radiation, thus heating other objects around. And infrared rays can penetrate the inside of the human body 15cm, heat from the inside, solid this system is also known as "artificial solar heating system".
發生器安裝
The combustion unit is installed outside the building(see the below picture 1),and connected directly to the electrical and gas networks,eliminating the need for a boiler room,a traditional boiler,and a hydraulic circuit.This ensures immediate operation and significantly reduces initial costs.
側墻安裝屋頂安裝
輻射段安裝

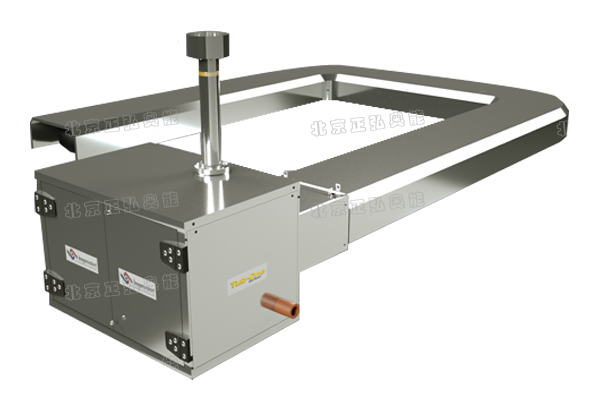

The radiant sections are available in various configurations(see the below picture 2).The sections are connected using the flexible joint,which is an innovative pipe connection solution that eliminates the need for silicone and screws.This exclusive system has good high temperature resistance,can withstand 1700℃high temperature,which ensures a perfect seal and compensates for thermal expansion,removing the need for expansion joints.
The combustion unit is installed outside the building(see the below picture 1),and connected directly to the electrical and gas networks,eliminating the need for a boiler room,a traditional boiler,and a hydraulic circuit.This ensures immediate operation and significantly reduces initial costs.
側墻安裝屋頂安裝
輻射段安裝
The radiant sections are available in various configurations(see the below picture 2).The sections are connected using the flexible joint,which is an innovative pipe connection solution that eliminates the need for silicone and screws.This exclusive system has good high temperature resistance,can withstand 1700℃high temperature,which ensures a perfect seal and compensates for thermal expansion,removing the need for expansion joints.
IMPRESIND TUB-ONE infrared gas-fried radiant heating system can be applied in hangars,railway maintenance center,industrial plants,stadiums,museums,golf driving ranges,exhibition halls and other large premises.
